| Place of Origin: | China |
|---|---|
| Brand Name: | EN plus |
| Certification: | CE |
| Model Number: | AC7000-AE-25 |
| Minimum Order Quantity: | 50 |
| Price: | FOB: 300~350 USD |
| Packaging Details: | Cartons |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 per month |
| Name: | Electric Car Home Smart Chargers | Power Supply Voltage: | AC230 ±10% |
|---|---|---|---|
| Rated Current: | 10-32A | Maximum Power: | 7.4kW |
| Frequency: | 50-60Hz | Cable Length: | 4m |
| Sockets/Plugs: | Type1/Type2 | IP Grade: | IP65 |
| Working Temperature: | -30℃~45℃ | ||
| Highlight: | electric vehicle charging pile,ev home charger |
||
Product Descripton

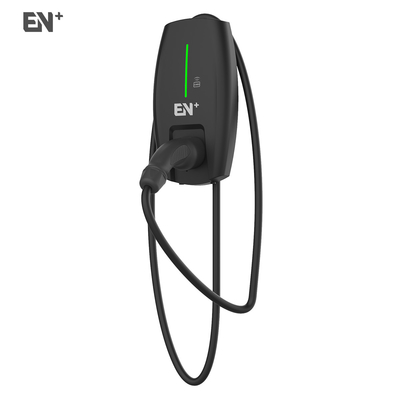

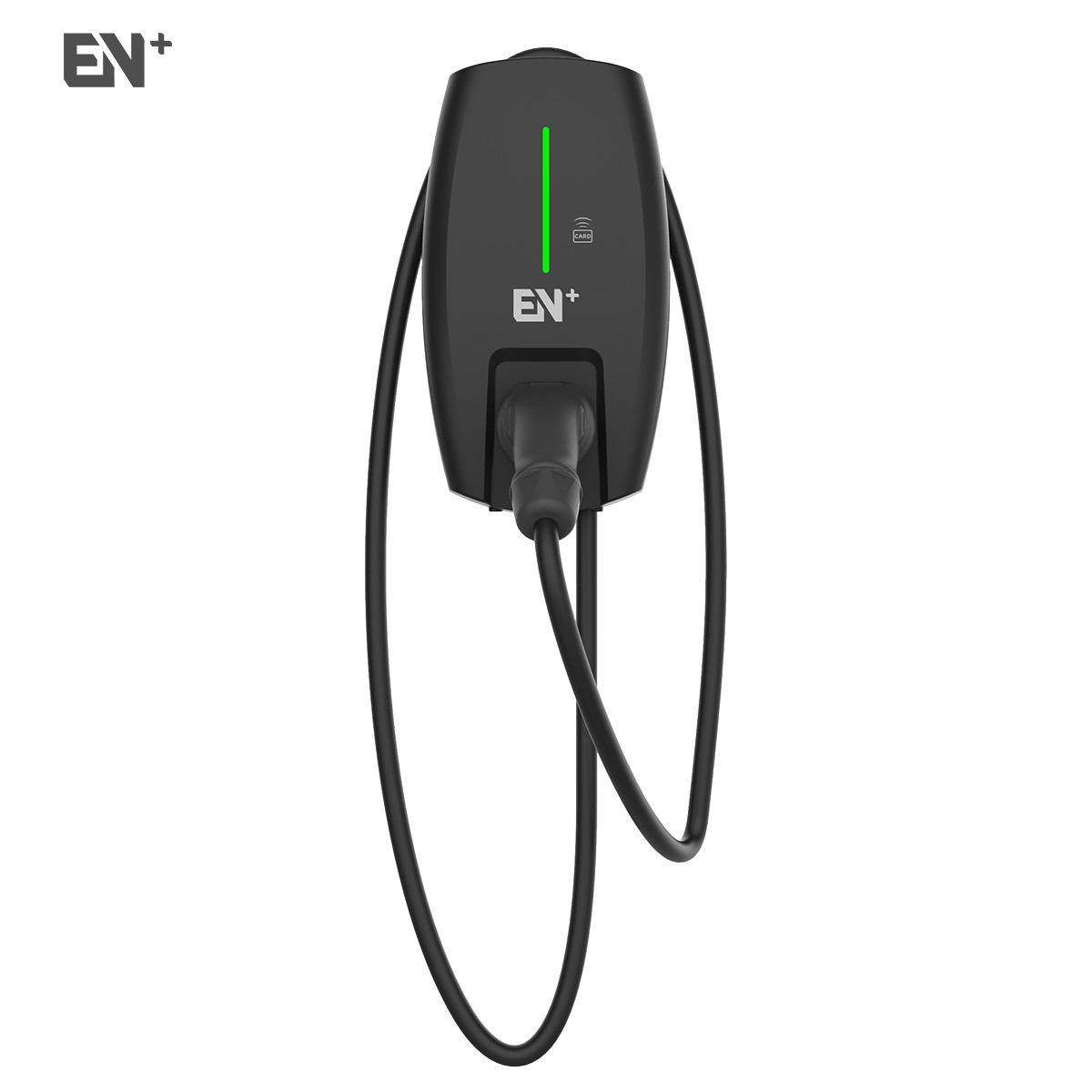

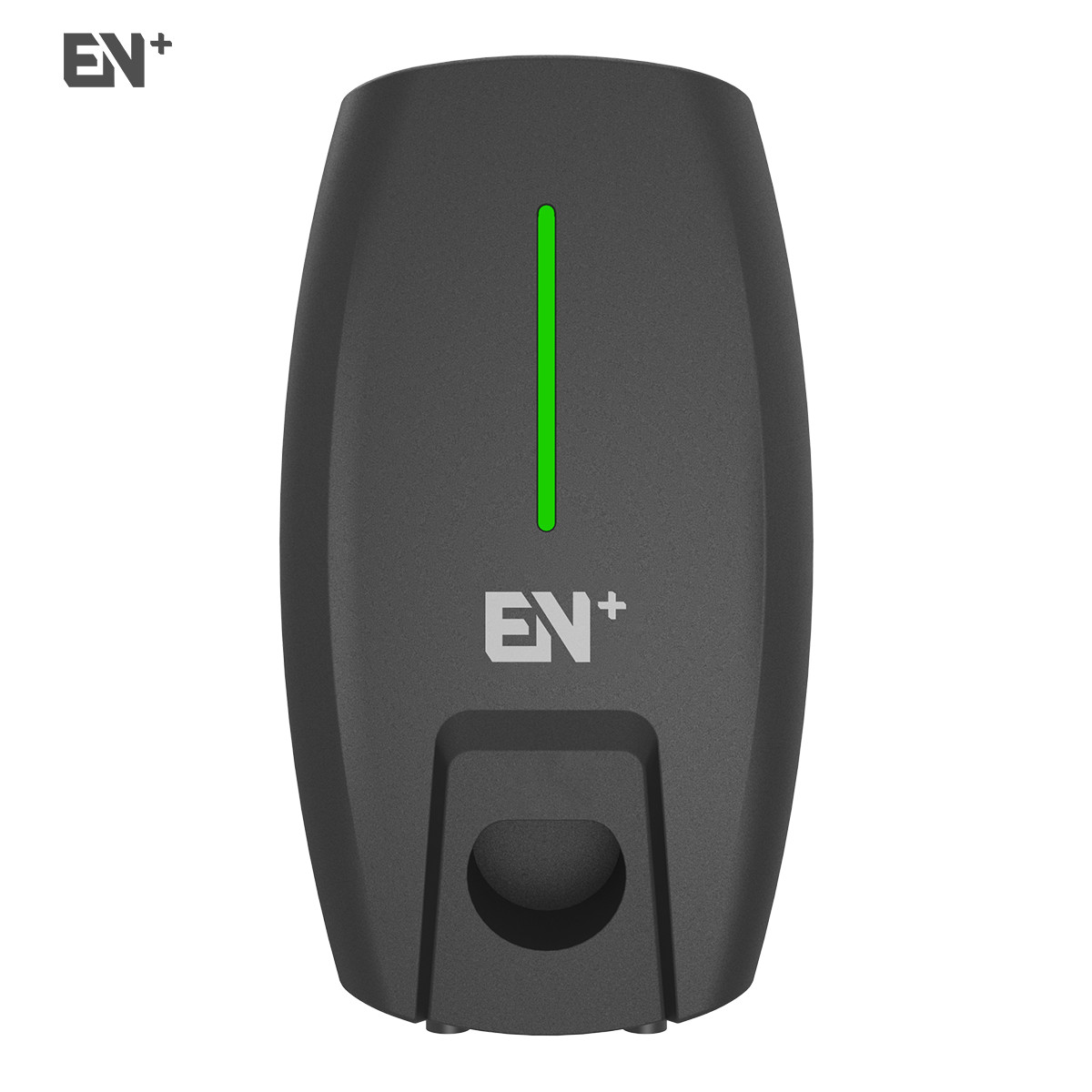

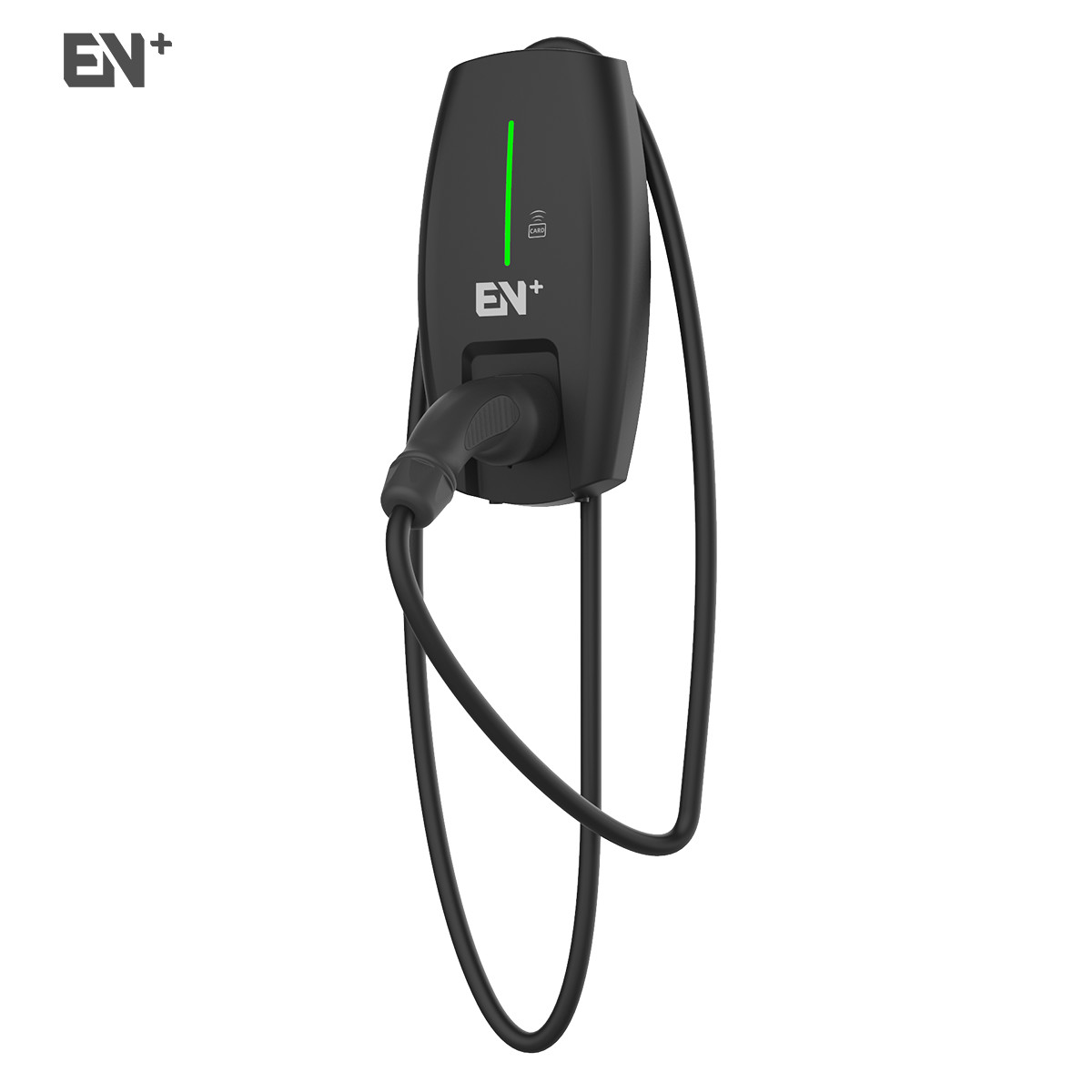

This Smart Home Charger is designed to provide an 'smarter' charging solution for customers. It can be controlled by APP, to schedule charging, adjust current, and start and stop charging remotely. Of course, if you want to make it simple, it also can be plug & play or activate by RFID card.
It also has excellent water and dust proof, with IP65 protection level. Even in the case of thunder or rain, charging in outdoor is very safe.
This charger will automatcially stop charging once it has complete. Or you can manually stop it on the APP. You can check the charging data on the APP. In addtion, it can be upgraded remotely by suppliers.
Product Features
Smart Home Wallbox
Intelligent Control
Flexible Option
Secure and Safe
Specifications
| Datasheet | Model | AC7000-AE-25 |
| Input | Power Supply | 1P+N+PE |
| Rated Voltage | 230V AC | |
| Rated Current | 32A | |
| Frequency | 50/60Hz | |
| Output | Output Voltage | 230V AC |
| Maximum Current | 32A | |
| Rated Power | 7KW | |
| User Interface | Charge Connector | Type 2 cable |
| Cable Length | 4M | |
| Enclosure | Plastic PC940 | |
| LED Indicator | Green/Yellow/Red | |
| RFID Reader | Mifare ISO/IEC 14443 A | |
| Start Mode | Plug&Play/RFID card/App | |
| Emergency Stop | No | |
| Communication | WiFi | Yes |
| Bluetooth | Optional | |
| OCPP | OCPP 1.6 JSON (OCPP 2.0 optional) | |
| Sefety | Energy Meter | No |
| RCD | 6mA DC | |
| Ingress Protection | IP65 | |
| Impact Protection | IK10 | |
| Electrical Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | |
| Certification | CE | |
| Certification Standard | EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018 | |
| Warranty | 2 Years | |

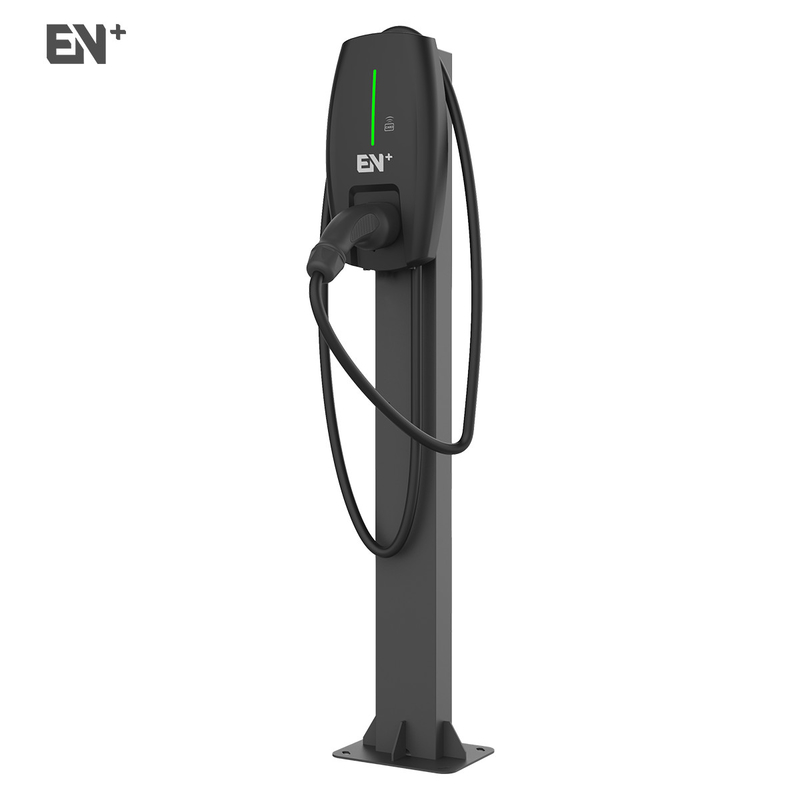

| Environment | Installation | Wall-mount/Pole-mount |
| Work Temperature | -30℃~+50℃ | |
| Work Humidity | 5%~95% | |
| Work Altitude | <2000M | |
| Package | Product Dimension | 325*181*87MM (H*W*D) |
| Package Dimension | 434*324*210MM (L*W*H) | |
| Net Weight | 3.2KG | |
| Gross Weight | 4.0KG | |
| External Package | Carton |
